NEW QUESTION # 76
As shown in the figure below, which port of the following switch will be blocked?

A. G0/0/1 of SWC
B. G0/0/2 of SWC
C. G0/0/3 of SWB
D. G0/0/3 of SWA

Answer: A

NEW QUESTION # 77
Which of the following commands to configure the default route is correct?

A. [huawei] ip route-static 0.0.0.0 0.0.0.0 192.168.1.1
B. [huawei] ip route-static 0.0.0.0 0.0.0.0 0.0.0.0
C. [huawei] ip route-static 0.0.0.0 255.255.255.255 192.168.1.1
D. [huawei-Serial0] ip route-static 0.0.0.0 0.0.0.0 0.0.0.0

Answer: A

NEW QUESTION # 78
The ACL does not filter the traffic generated by the device itself to access other devices, but only the forwarded traffic, which includes the traffic from other devices accessing the device.

A. False
B. True

Answer: B

NEW QUESTION # 79
In the IEEE802.11 standard, which can support both the 2.4G frequency band and the 5G frequency band?

A. 802.11n
B. 802.11g
C. 802.11a
D. 802.11b

Answer: A

NEW QUESTION # 80
The two ends of the PPP link are not in the same network segment and cannot communicate.

A. False
B. True

Answer: A

NEW QUESTION # 81
What is the number range of the advanced ACL?

A. 2000-2999
B. 4000-4999
C. 6000-6031
D. 3000-3999

Answer: D

NEW QUESTION # 82
The packet filtering firewall provides support for detecting and filtering fragmented packets. What kind of fragmented packets can the packet filtering firewall filter? (Multiple choice)

A. Subsequent fragmented packets
B. The first fragmented packet
C. Non-fragmented packets
D. Forged ICMP error messages

Answer: A,C

NEW QUESTION # 83
ip route-static 10.0.2.2 255.255.255.255 10.0.12.2 preference 20, which statement about this command is correct? (Multiple choice)

A. The priority of this route is 20
B. This route can guide the forwarding of data packets whose destination IP address is 10.0.2.2
C. The Next Hop of this route is 10.0.12.2
D. This route can guide the forwarding of data packets whose destination IP address is 10.0.12.2

Answer: A,B,C

NEW QUESTION # 84
In the DHCPv6 stateless automatic allocation scheme, the host does not need to send any DHCPv6 packets.

A. False
B. True

Answer: A

NEW QUESTION # 85
Regarding the configuration shown in the picture, which statement is correct?
<Huawei>system-view
[Huawei] user-interface console 0
[Huavei-ui-console0] history-command max-size 20

A. The default size of the historical command cache is 5
B. After the above configuration is completed, the historical command cache can save 20 bytes of commands
C. history-command max-size 20 is to adjust the size of the history naming cache to 20
D. The default size of the historical command cache is 5 bytes

Answer: C

NEW QUESTION # 86
SNMP messages are carried by TCP.

A. False
B. True

Answer: A

NEW QUESTION # 87
Which WLAN security policies support the open link authentication method? (Multiple choice)

A. WPA2-PSK
B. WEP
C. WPA
D. WPA2-802.1X

Answer: A,B,C,D

NEW QUESTION # 88
Which of the following attributes cannot be used as a parameter to measure Cost?

A. Hop count
B. Bandwidth
C. sysname
D. Latency

Answer: C

NEW QUESTION # 89
A network engineer prompts the following information when entering the command line:
Error: Unrecognized command found at '^' position. Which statement is correct about this prompt message?

A. The input command is incomplete
B. The parameter type is wrong
C. The input command is ambiguous
D. Keyword not found

Answer: D

NEW QUESTION # 90
A switch receives a unicast data frame with a VLAN tag, but finds that the destination MAC address of the data frame cannot be found in its MAC address table, then the switch's processing behavior for the data frame is?

A. The switch will broadcast the data frame to all ports
B. The switch will broadcast this data frame to all Access ports
C. The switch will broadcast the data frame to all ports (except the receiving port) belonging to the VLAN where the data frame is located
D. The switch will discard the data frame

Answer: C

NEW QUESTION # 91
What are the conditions for the eSight network management to be able to receive and manage devices and report alarms? (Multiple choice)

A. The managed device on the network management must be configured with the correct SNMP protocol and parameters
B. Correct trap parameters are configured on the device side
C. The device is managed by the network management
D. There must be communication between the network management and the device

Answer: A,B,C,D

NEW QUESTION # 92
In the STP protocol, which of the following factors will affect the election of the root switch? (Multiple choice)

A. The IP address of the switch
B. Switch interface bandwidth
C. Switch interface ID
D. The MAC address of the switch
E. Switch priority

Answer: D,E

NEW QUESTION # 93
On Huawei routers, the value of the static routing protocol priority by default is?

A. 0
B. 1
C. 60 _
D. 2

Answer: C

NEW QUESTION # 94

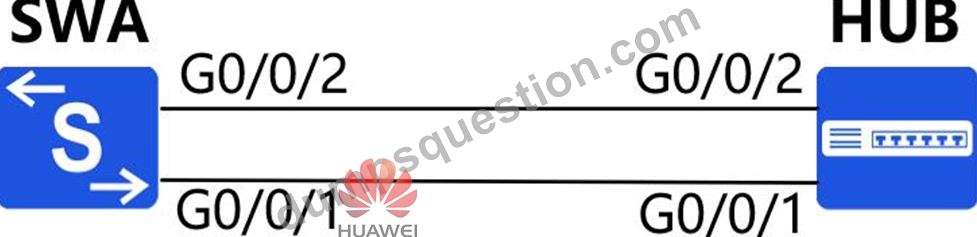

As shown in the figure, the switch uses the default parameters to run STP, which of the following ports will be elected as the designated port?

A. G0/0/1 port of switch A
B. G0/0/1 port of HUB
C. G0/0/2 port of HUB
D. G0/0/2 port of switch A

Answer: A

NEW QUESTION # 95
DHCP Server is the DHCP server, which is responsible for the allocation of client IP addresses. Which of the following steps should be included when configuring the DHCP Server? (Multiple choice)

A. Globally enable the DHCP function
B. Configure the option82 option of DHCP
C. When using the DHCP server mode of the global address pool, configure the global address pool
D. When using the DHCP server mode of the terminal address pool, configure the port address pool

Answer: A,C,D

NEW QUESTION # 96
If the proto of a routing information in the routing table is direct, the routing priority must be 0.

A. False
B. True

Answer: B

NEW QUESTION # 97
The management of users by NAS equipment is based on domains. Each user belongs to a domain. A domain is a group composed of users belonging to the same domain.
